FIXED PITCH PROPELLERS FOR MOTOR BOATS

Fixed pitch propellers for motor boats

French manufacturer of marine propulsion systems

FRANCE HELICES manufactures conventional propellers according to your application in 2,3,5,6,7 blades in bronze or NiBrAl, class II or S according to the ISO 484/2 standard. FRANCE HELICES manufactures your propulsion in Cannes or Concarneau site according to your specifications.

Propulsion for any type of engines: diesel, gasoline, electric, hybrid engines.

All our propellers are calculated by our engineers and technicians based on the characteristics communicated by you on the calculation sheet.

CONVENTIONAL PROPELLERS ALL VESSELS

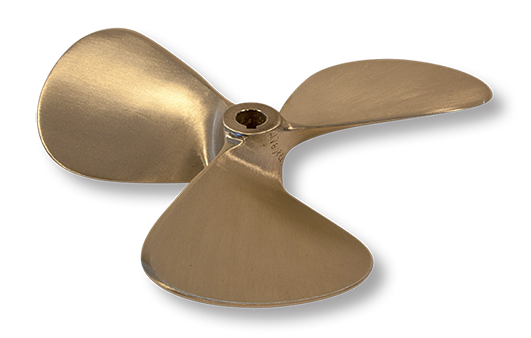

3 BLADE PROPELLER FH3 55

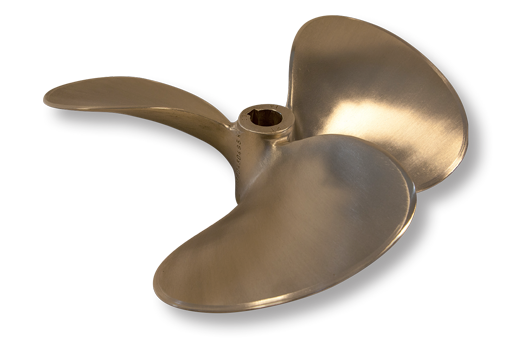

3 BLADE PROPELLER FH3 80/85

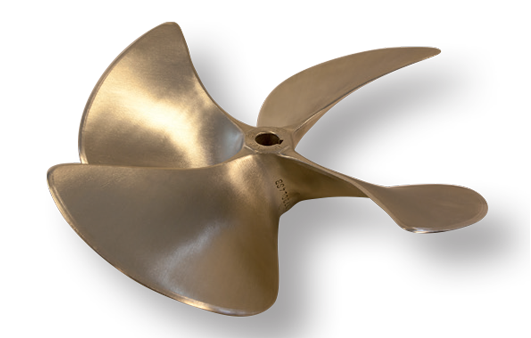

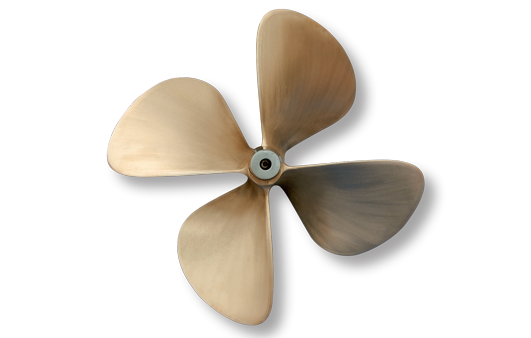

4 BLADE PROPELLER FH4 65

4 BLADE PROPELLER FH4 75

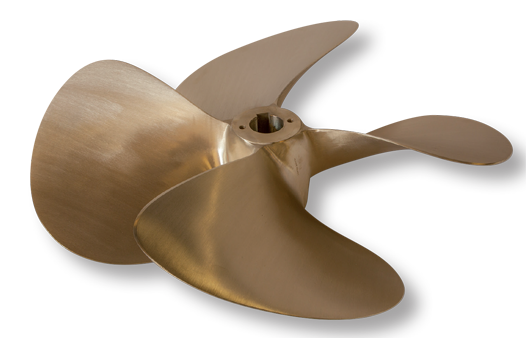

4 BLADE PROPELLER FH4 85 FH4 95

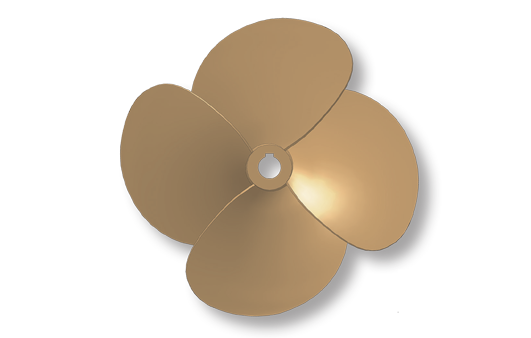

4 BLADE PROPELLER FH4 125

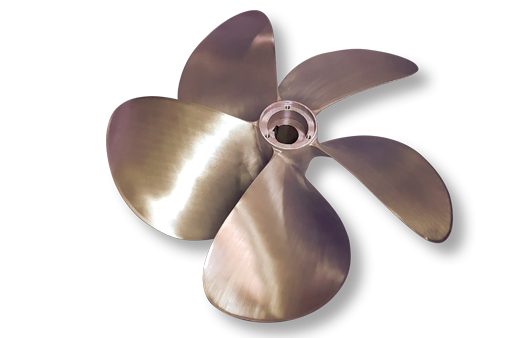

5 BLADE PROPELLER FH5 90

SKEW BACK PROPELLERS

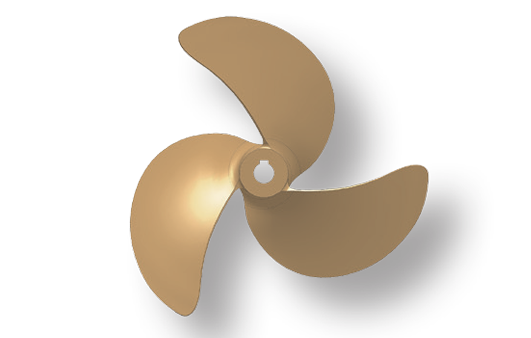

3 BLADE SILENT PROPELLER FH3 SB

Hélice 4 pales silencieuse

4 BLADE SILENT PROPELLER FH4 SB

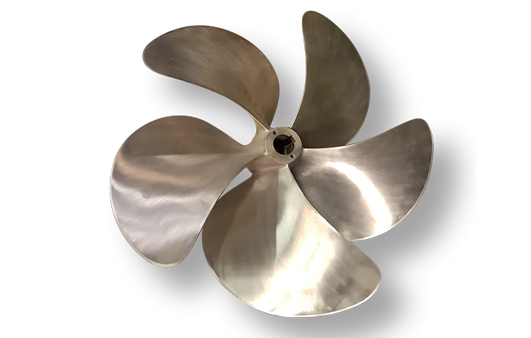

5 BLADE SILENT PROPELLER FH5 SB

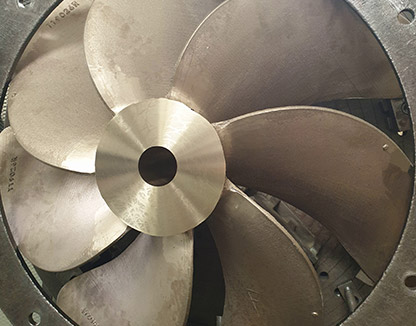

KAPLAN PROPELLER FOR NOZZLE

3 BLADE KAPLAN PROPELLER – FH3K

4 BLADE KAPLAN PROPELLER -FH4K

5 BLADE KAPLAN PROPELLER – FH5K

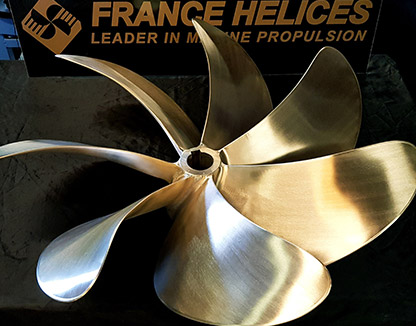

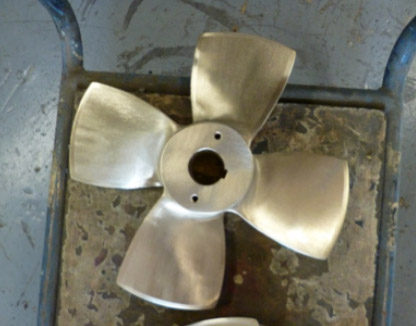

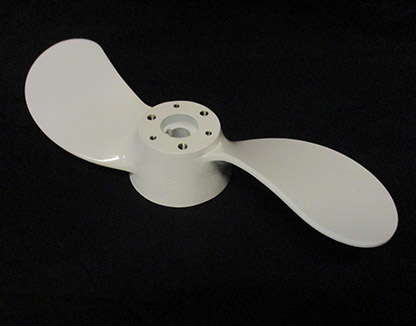

SPECIAL PROPELLERS TAILOR MADE FOR SPECIFIC APPLICATIONS

FRANCE HELICES manufactures special propellers or prototypes on request according to your specifications in 2, 3, 4, 5, 6, 7 blades in bronze, Ni-Br-Al or other on request (according to your model, according to your drawings):

Tidal turbines
Mixers and rotating agitators
Submarines
Bow thrusters

CUSTOM MADE SURFACE PIERCING PROPELLERS

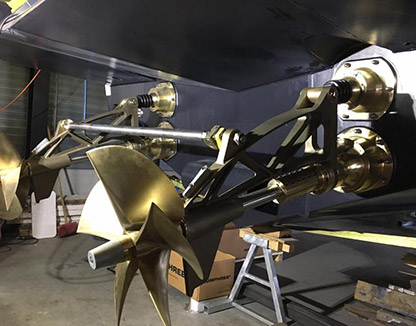

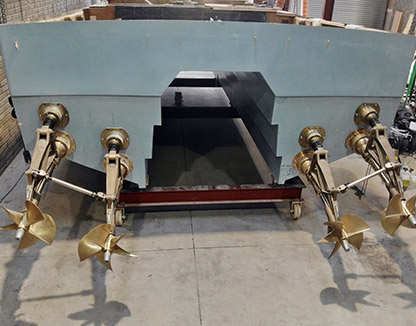

FRANCE HELICES surface piercing propellers are specially designed to equip surface drives in order to offer exceptional performance to very fast yachts with planing hulls, such as sport fishing boats, racing boats as well as professional applications where acceleration, high speed and endurance are a necessity such as ambulances, pilot boats, patrol boats, interceptors, search and rescue vessels, coast guards…

We calculate the resistance of your boat, equipped with surface drives, each boat having its own propellers in 4, 5 or 6 blades custom made to fit the characteristics of your boat.

They operate in water and air at high speed, semi-submerged. The surface piercing propeller eliminates cavitation as much as possible by replacing it with ventilation. The surface piercing propeller is therefore the most efficient propeller for this type of application.

FRANCE HELICES’ constant research and development work has improved the efficiency of surface propellers by up to 10% over the last decade. The FH5SSP model of the surface propeller shows an efficiency higher than 75% in cavitation tunnel tests. The modeling of the blades is carried out by the design office and then studied in CFD.

FRANCE HELICES manufactures its surface piercing propellers, made to measure, in France in Nibral, from 20? to 60? of diameter, in class S, according to the ISO 484/2 standard. They are adapted to all brands of drives (SURFACE DRIVE SYTEM, ARNESON…) trimmable or fixed.

Propeller calculations and design on the latest CAD CAM software

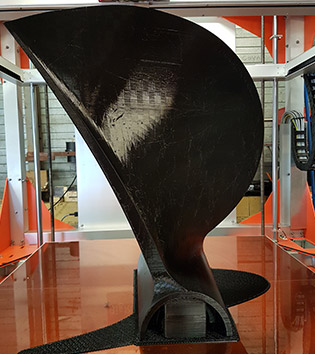

Manufacturing of the 3D printing pattern for foundry
Pattern for foundry casting model.

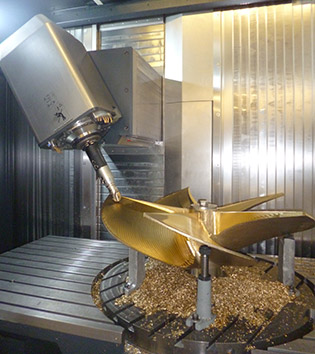

Machining on CNC machine with 5 continuous axes

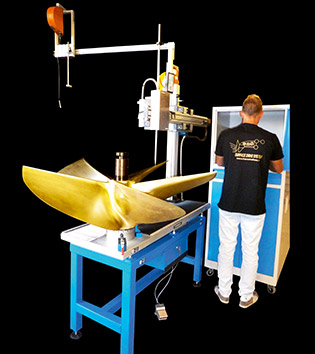

Dynamic balancing
Controls and measurements throughout the manufacturing process
Certificate of conformity according to ISO 484/2 Class S

THE EXCELLENCE OF FRANCE HELICES SURFACE PIERCING PROPELLERS

Reliability
Confort
Performance
Precision

SURFACE PIERCING PROPELLERS

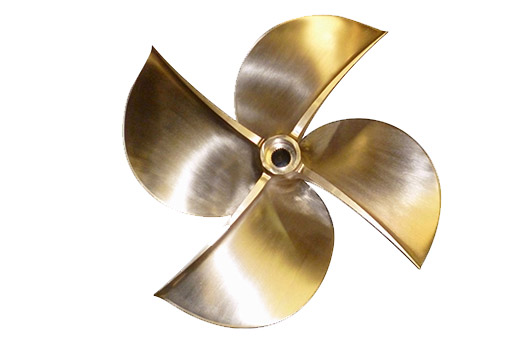

4 BLADE SURFACE PIERCING PROPELLER FH 4SSP

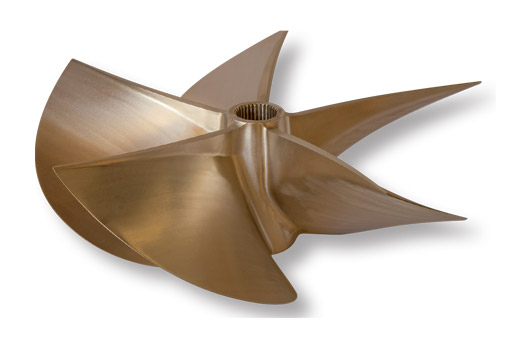

5 BLADE SURFACE PIERCING PROPELLER FH5 SSP

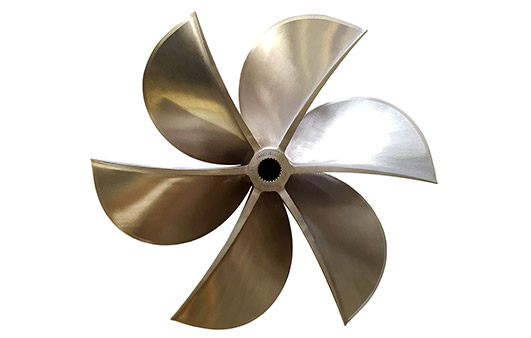

6 BLADE SURFACE PIERCING PROPELLER FH6SSP
